Definitive Technologyspeakers

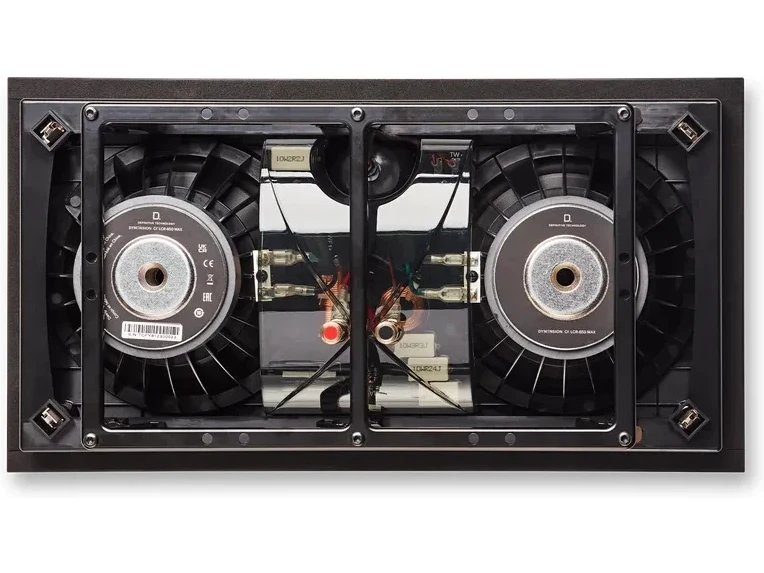

Definitive Technology LCR-650 Max
Equipment Sales & Professional Installation
MPN: LCR-650 Max
- Dual 6.5" Mineral-Filled BDSS Woofers with Linear Response Waveguide
- 1" Pivoting Aluminum Oxide Dome Tweeter
- Toolless Installation
- Flush, Border-Free Design
- Tweeter Attenuation Switch
Specifications
Specifications
| Product Dimensions (W x H x D)* *Horizontal Orientation | 17.18 x 9.35 x 3.94 in (436.4 x 237.4 x 100.3 mm) |
|---|---|
| Cut- Out Dimensions (W x H) | 15.95 x 8.12 in (405.2 x 206.2 mm) |
| Mounting Depth | 3.66 in (92.9 mm) |
| Weight | 7.47 lbs (3.39 kg) |
| Color | White Paintable Grille |
| Grille material | Micro-Perforated Magnetic Grille |
| Tweeter | 1 in Pivoting Aluminum Oxide Dome Tweeter |
| Midrange/Midbass | (2) 6.5 in. Mineral Filled Poly BDSS with Linear Response Waveguide |
| Frequency response | 32 Hz-30 kHz (-10dB) 46 Hz-25 kHz (-3dB) |
| Nominal impedance | 4 ohm |
| Sensitivity | 89dB (2.83V/1m) |
| Recommended Amplifier Power | 20-200W |
| IP Rating (Ingress Protection) | IP55 |
| Warranty | 5 years |
| Included accessories | Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide |
