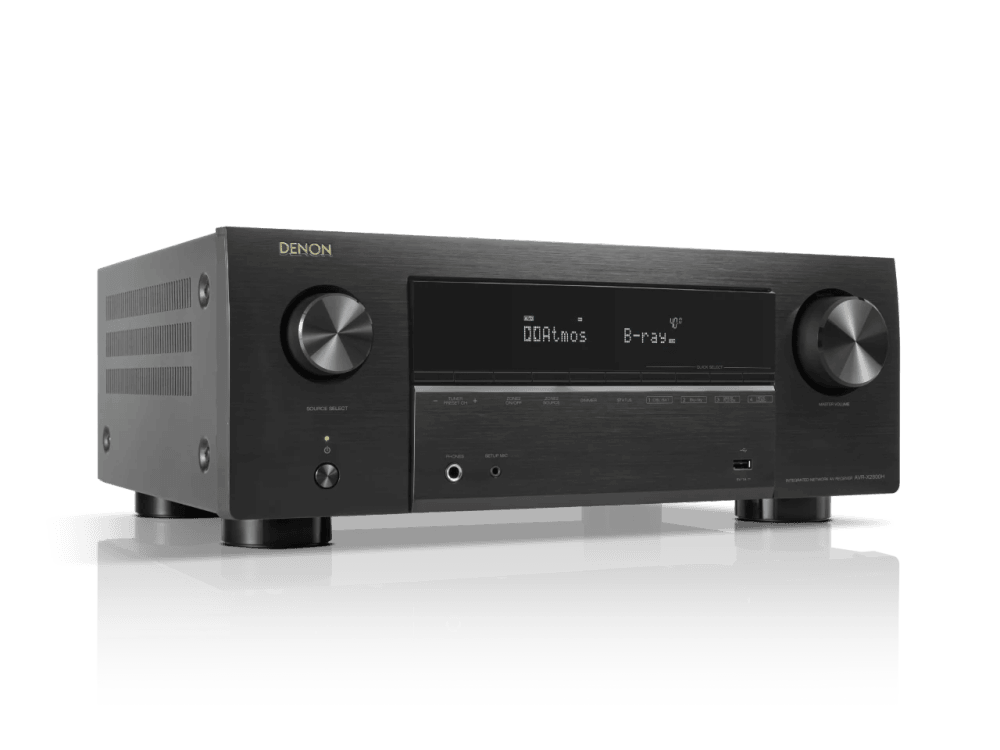

AVR-X2800H
Enjoy incredible 8K video and immersive 3D audio from the AVR-X2800H. Fill medium-size rooms with more refined sound from a 7.2 or 5.2.2 set up with Dolby Atmos and DTS:X. And with HEOS Built-in, wirelessly stream online music and share with HEOS-enabled speakers in other rooms.
MPN: 300610-01-00-101
How we specify a Houston theater
Dedicated theaters in Houston usually start with a light-controlled room and a screen in the 1.0 to 1.3 gain range. We work the projector choice backwards from seating distance and screen width, then set the audio for multiple rows instead of a single sweet spot. For the AVR-X2800H specifically, we confirm the fit against your room in Houston, TX before quoting the install.
Service area: Houston, Memorial, River Oaks, Bellaire, West University Place, The Woodlands, Katy, Sugar Land.
Specifications
Multichannel Surround
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
|---|---|
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Multichannel Stereo | Yes |
| Max. Number of Processing (Pre-Amp) Channels | 7.1 |
Sound Enhancements
| Discrete Power Amplifier | Yes |
|---|---|
| Pure Direct | Yes |
| Audyssey | MultEQ XT |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Compressed Audio Restorer | Yes |
Network
| Media Server | Yes |
|---|---|
| Wireless Multi-Room Technology Powered by HEOS | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| AirPlay 2 | Yes |
| TuneIn | Yes |
| Spotify Connect | Yes |
| Pandora | Yes |
| SiriusXM | Yes |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back, Front | 6, No |
|---|---|
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2, No |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes , Yes, Yes, Yes, Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate, Quick Flame Transport, Quick Media Switching | Yes, Yes, No |
| 3D Signal Pass-through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Auto LipSync | Yes |
Multi-room CI
| Multi-Room Zones | 2 |
|---|---|
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
| IP Control, RS232 Control, Web Control, App Control | Yes, Yes /Yes, Yes |
| Remote In / Out | Yes, Yes |
| HDMI Diagnostics | Yes |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT |
|---|---|
| Front Display | 1-Line FLD |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
Inputs/Outputs
| HDMI In, Out | 6, 2 |
|---|---|
| Multi-Room Video Out: Video, HDMI | No, No |
| Analog In, Out | 4, No |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2, 1 |
| Multi-Room Out: Analog, Digital | 1, No |
| Multichannel Pre-out | Yes (0.2) |
| Subwoofer Out | 2 |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Number of Speaker Terminals | 7 |
| Speaker A / B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| AM/FM Tuner | Yes |
Specifications
| Number of Power Amps | 7 |
|---|---|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 95W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 125W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 185W |
General
| System Remote Control | RC-1253 |
|---|---|
| Pre-Programmed, Learnable, LCD Display | No, No, No |
| Power Consumption in W | 500 |
| Power Consumption No-Sound (ECO On / Off) in W | 35W/75W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches | 17.1 x 13.4 x 6.6 ( 17.1 x 13.4 x 9.3 ) [ 17.1 x 13.0 x 6.6 ] |
| Weight in LBS | 21.0 |
| Weight in LBS (Packaging) | 25.4 |
Features
- 7.2 channels
- 95 watts per channel
- 8K Ultra HD
- 3D Audio
- Powered by HEOS
- 6 HDMI inputs
Documents
Related models
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Houston, TX, then quote the install.
