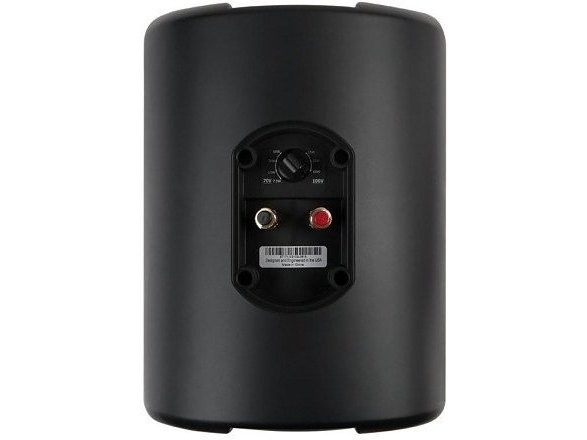

Episode ECS-500-AW70V-6-BLK
Equipment Sales & Professional Installation
MPN: ECS-500-AW70V-6-BLK
- 6" all-weather surface-mount speaker
- 1" titanium dome tweeter
- 70V/100V multi-tap transformer
- IPX5 weather-rated
- Polypropylene cone woofer
- 88dB sensitivity
- Lifetime limited warranty
Specifications
Specifications
| Type | 6" all-weather commercial surface-mount speaker |
|---|---|
| Woofer | 6" polypropylene cone woofer with vacuum-deposited titanium |
| Tweeter | 1" pure titanium dome tweeter |
| Frequency Response | 65Hz – 20kHz |
| Crossover | 2.2kHz |
| Taps (70V) | 3.75W (70V only), 7.5W, 15W, 30W |
| Transformer | 70.7V / 100V |
| IP Rating | IPX5 |
| Connector | Gold-plated push terminal |
| Dimensions (without bracket) | 7.5" x 11.1" x 7.2" |
| Dimensions (with bracket) | 7.5" x 11.1" x 7.7" |
| Weight | 8.9 lb |
| Warranty | Limited lifetime |
