JBLspeakers
JBL C65P/T
Equipment Sales & Professional Installation
MPN: C65P/T
- RBI Radiation Boundary Integrator Technology
- 120 deg conical coverage
- 5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
- 75 Watts, 8 ohms and 60W multi-tap transformer
- Black or white
Specifications
Specifications
| Frequency Range (-10dB) | 55 Hz - 20 kHz |
|---|---|
| Frequency Range (+/-3 dB) | 78 Hz - 18 kHz |
| Power Rating | 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power |
| Nominal Sensitivity | 86 dB |
| Directivity Factor (Q) | 5.3 |
| Directivity Index (DI) | 7.2 dB |
| Maximum SPL (1m) | 105 dB continuous pink noise, 111 dB peak |
| Transformer Taps | 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W |
| Transformer Insertion Loss | 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W |
| Drivers | LF: 130 mm (514 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former HF: 20 mm (34 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former |
| Enclosure | High impact polystyrene |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splashproof rating. |

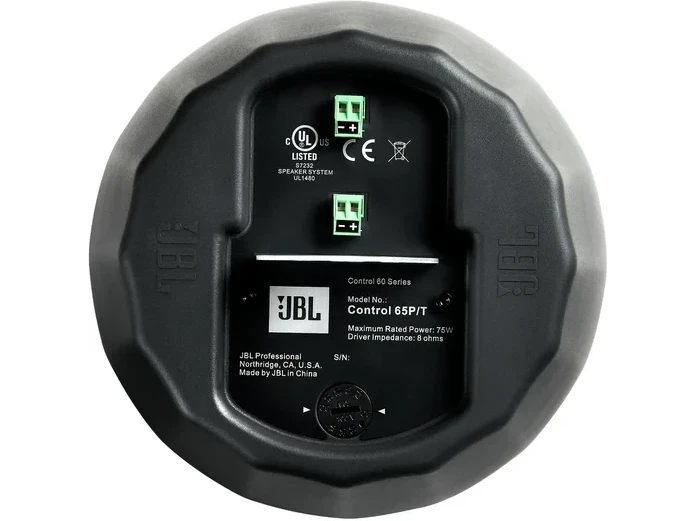

| Input Connectors | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Suspension | Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
| Safety Agency | Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. |
| Dimensions (H x W x D) | 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket. |
| Net Weight (each) | 3.7 kg (8 lbs) |
| Shipping Weight (pair) | 8.7 kg (19 lbs) |
| Included Accessories | Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors |
| Optional Accessories | MTC-PC60 top panel / terminal cover |
| Colors | Available in black or white (-WH). Paintable. |
