JVCprojectors

DLA-RS2200

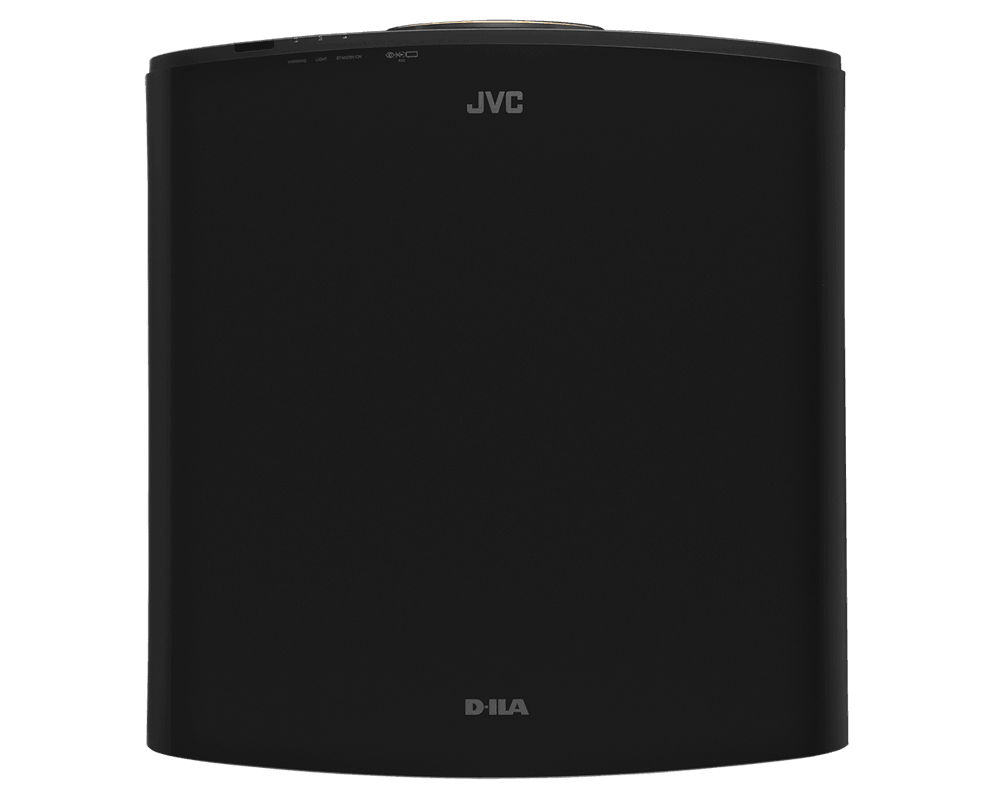

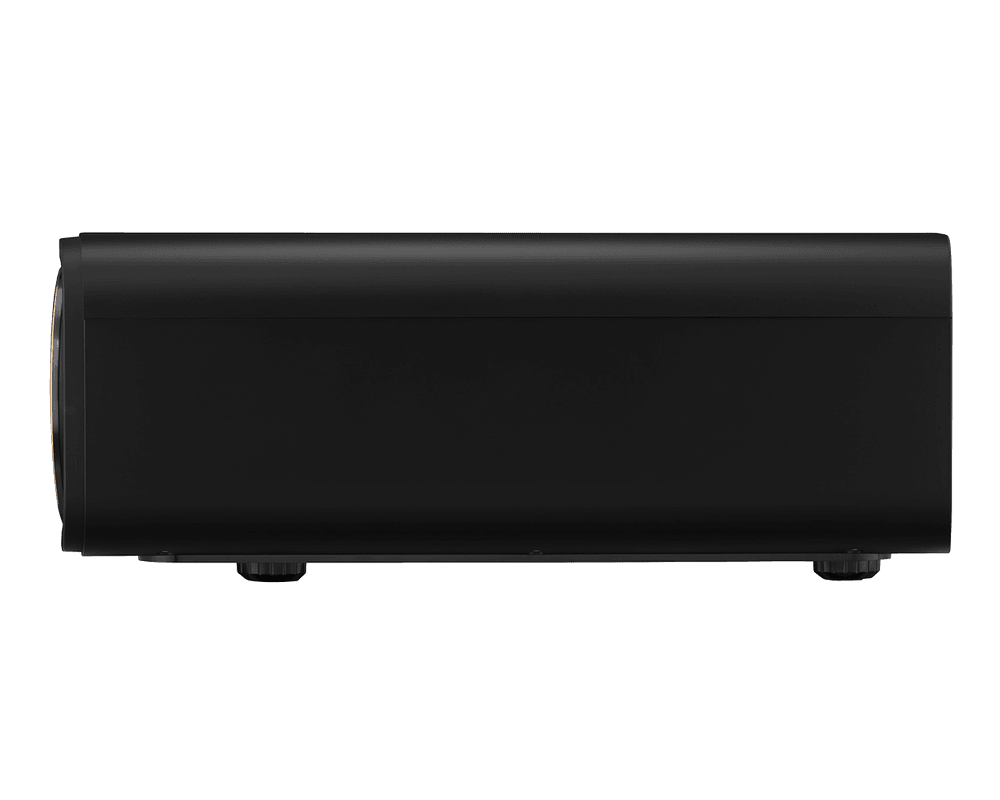

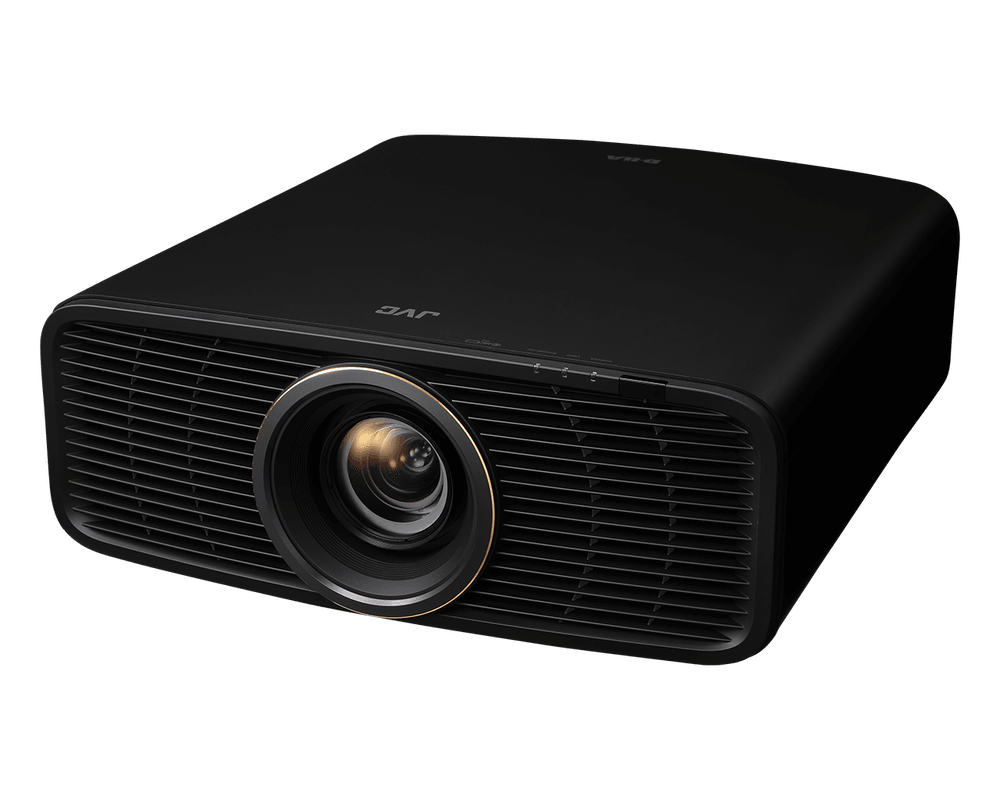

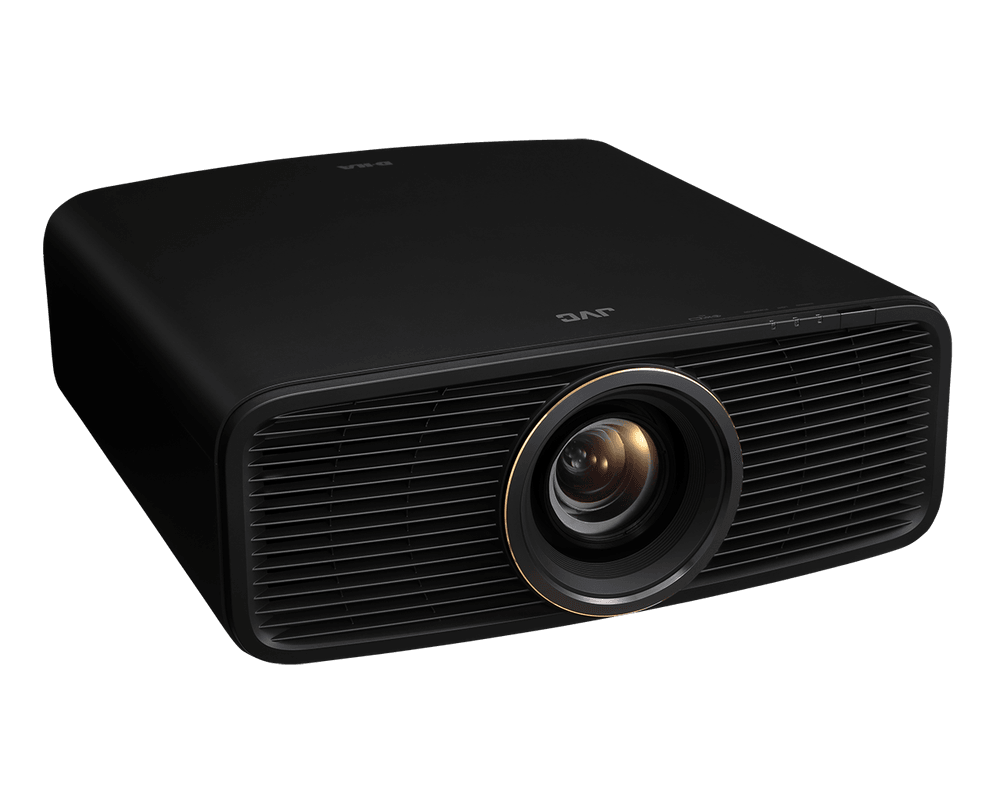

Name: DLA-RS2200
Brand: JVC

DLA-RS2200 by JVC. Native 4K 4,096 x 2,160 pixels.

Request a quoteTalk to the team that installs it in Houston, TX. System design, screen matching and calibration included in the quote.

How we specify a Houston theater

Dedicated theaters in Houston usually start with a light-controlled room and a screen in the 1.0 to 1.3 gain range. We work the projector choice backwards from seating distance and screen width, then set the audio for multiple rows instead of a single sweet spot. For the DLA-RS2200 specifically, we confirm the fit against your room in Houston, TX before quoting the install.

Service area: Houston, Memorial, River Oaks, Bellaire, West University Place, The Woodlands, Katy, Sugar Land.

Specifications

Device

D-ILA Technology	Yes
Chip Type	3rd Generation 0.69-inch 4K D-ILA device
Native 4K	Yes
Native Resolution	4096 x 2160
Number Of Chips	3
Display Resolution	4096 x 2160

Light Source

Laser	Yes
Type	BLU-Escent Laser Diode
Life Time (Standard Mode)	20000 hours


Brightness	2300 lm
Dynamic Contrast	∞ : 1
Native Contrast	80000 : 1
Dynamic Light Power control	Yes
Modes	Low,High,Balance,Off
Manual Aperture	Yes
Range	-15 (stops down) to 0 (opens up)
DCI-P3 Color Gamut	Yes
100% REC 709	Yes
Color Bit Depth	12 bit
ISFccc Certification	Yes

HDR

HDR10	Yes
HDR10+	Yes
Frame Adapt HDR	Yes
HLG	Yes
Mastering Info Display	Yes
Info data	MaxCLL, MaxFALL , DML
Deep Black Tone Control	Yes

Lens

Zoom	1.6 x
Throw Ratio	1.34 - 2.14 (16:9) 1.26 - 2.01 (17.9)
Diameter	80 mm
Build	15-element, 11-group.
Lens Shift	Yes
Range Horizontal	± 28 %
Range Vertical	± 70 %
Motorized Zoom	Yes
Motorized Shift	Yes
Motorized Focus	Yes
Projection Display size (diagonal)	60 - 200 inch
Memory Function	Yes
Number of user presets	5
Lens Cover	Yes

HDMI

HDMI	Yes
Number of Inputs	2
Data Rate	32 Gbps
HDCP Version	2.3
4K60P signal input	Yes
Video Signal range	480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range	640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
Input Level Adjustment	Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range	Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes	Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)

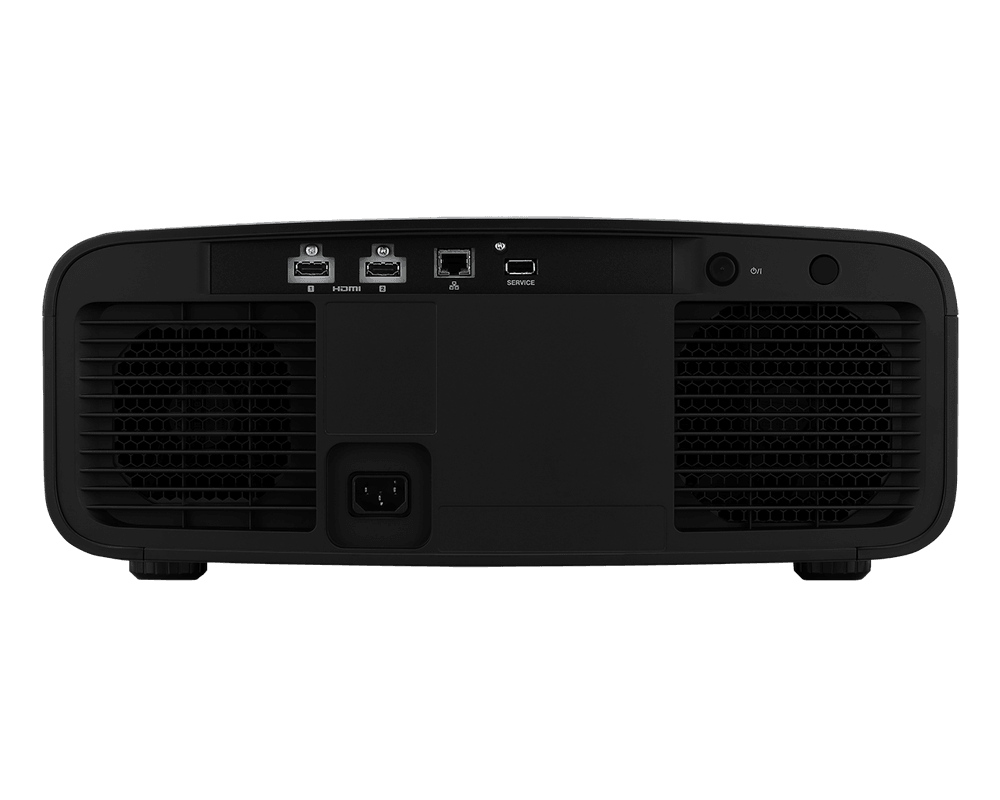

Connections

LAN	Yes
Connector	RJ45
Service	Yes
Connector	USB (Type A) for firmware update or backup

Picture Settings

Picture Modes	Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
Color Temperatures	Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth	12 bit
Gamma Adjust	HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
Color Management	6-Axis adjustable CMS
MPC	Yes
Filmmaker Mode	Yes
Auto Calibration	Yes
Installation Mode	Yes
Number of modes	5
Included settings	Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes	4 Modes (A, B, C, D)
Control4 SDDP	Yes

Power & Environment

Power Requirement	AC100-240V, 50/60Hz
Projector in Use	280W
Standby	Eco-mode: 0.3W
Network Standby	1.5W (LAN)
Fan Noise	23 dB
Eco Mode	Yes
Standby Timer	Yes
Operating Temperature	5°C to 35°C
Operating Humidity	20% to 80%
Installation Angle	Horizontal +/- 10 degree / Vertical +/- 10 degree
Installation Height	Below 2,000 m

In the box

Remote Control	Yes, RM-MH27
Quick Guide	Yes
Power Cord	Yes
Batteries	Yes, 2 x AAA-size batteries

Dimensions & Weight

Product Dimensions (WxHxD)	17-23/32 in x 7-5/32 in x 18-7/8 in
Product Weight	32.6 lbs

General Editing Note

General Note:	Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
