Klipschsubwoofers

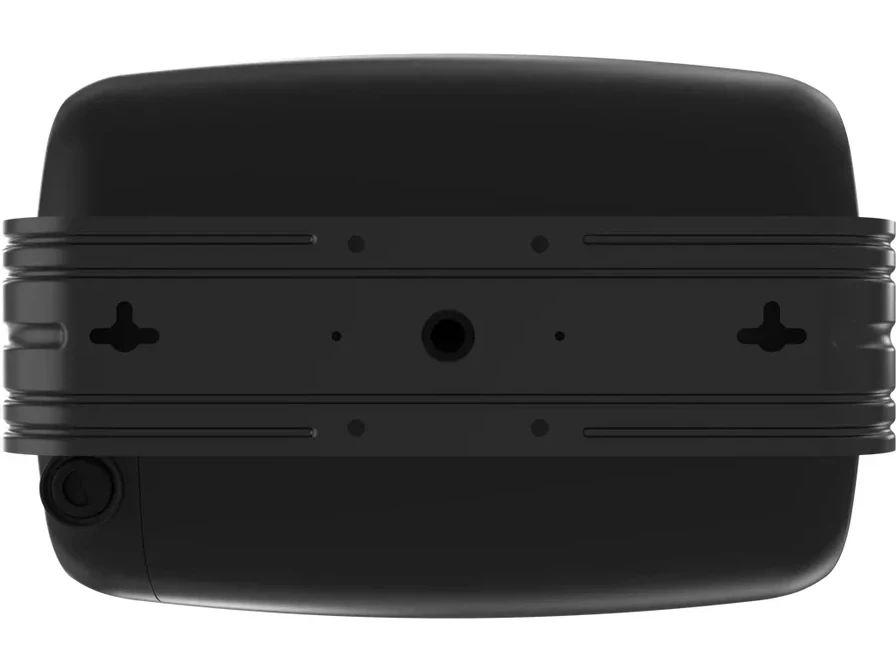

Klipsch PSM-800-SW-T
Equipment Sales & Professional Installation
MPN: PSM-800-SW-T
- 8" indoor/outdoor professional surface-mount subwoofer
- Patented Tractrix Hyperfold Port for maximum bass power
- IPX6 rated - water-resistant and rainproof for commercial environments
- Transformer-less 70V/100V design with two wattage tap settings
- 8-ohm bypass position for non-transformer installations
- Set screws on grille for a secure fit in any environment
- 4-pin Phoenix/Euro block connector for simplified installation
Specifications
Specifications
| Frequency Response | 38 Hz - 200 Hz ±4 dB (30 Hz -10 dB) |
|---|---|
| Power Handling | 150 watts (25.4V) 40 Hz - 200 Hz (600 watts peak) |
| Calc. Max Continuous Output | 107 dB |
| Sensitivity | 88 dB |
| Nominal Impedance | 8 ohms (4.2 ohms at 36 Hz minimum) |
| Transducer | 8" woofer |
| Enclosure Material | All-weather ABS plastic, paintable |
| Enclosure Tuning | Vented via 3 folded Tractrix ports |
| Input Connectors | 4-pin Euro block |
| Transformer Taps | 70V: 70W, 35W | 100V: 70W, 35W | Bypass: 8 ohms nominal |
| Overall Width | 15.5" |
| Overall Height | 12" |
| Overall Depth | 9.31" (11.12" with bracket) |
| Weight | 15.75 lbs (7.15 kg) |
