Zentyvideo-matrixes

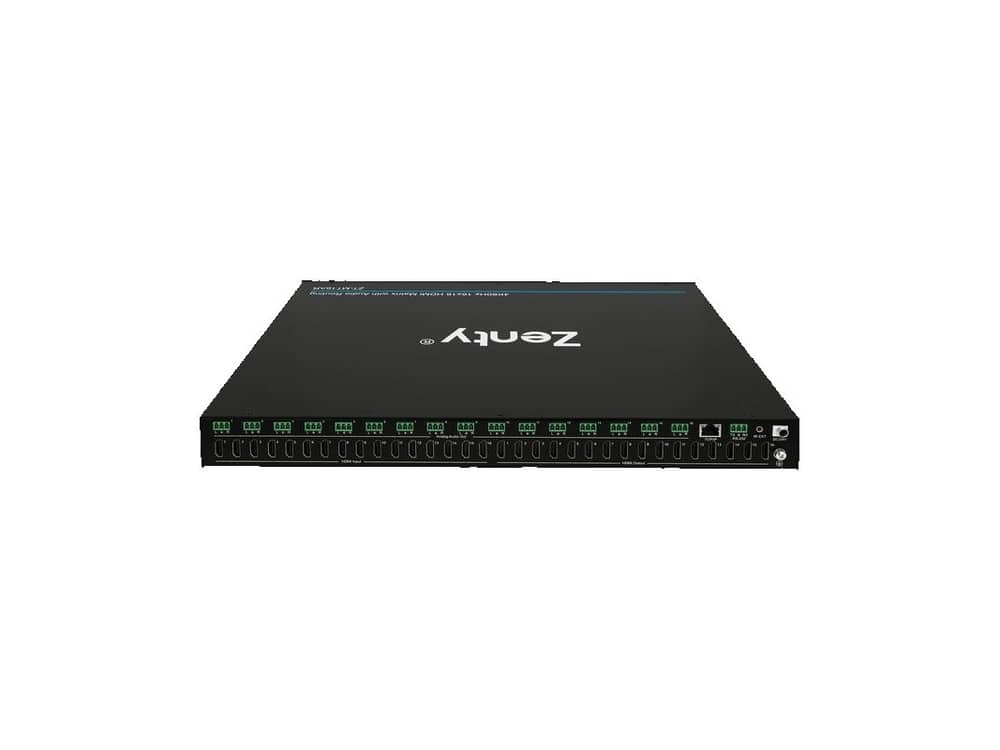

Zenty ZT-MT16AR
Equipment Sales & Professional Installation
MPN: ZT-MT16AR
- 16 x HDMI inputs and outputs
- HDMI 2.0, HDCP 2.2 compliant
- HDR, HDR10 and Dolby Vision
- 16-port analog audio matrix
- 4K to 1080p downscaling
- Front panel, IR, RS-232 and IP control
- 5-year warranty
Specifications
Video
| Inputs / Outputs | 16 x HDMI in, 16 x HDMI out |
|---|---|
| HDMI Version | HDMI 2.0 |
| HDCP | HDCP 2.2 / 1.4 compliant |
| Resolution | Up to 4K 60Hz |
| HDR | HDR, HDR10, Dolby Vision |
| Downscaling | 4K to 1080p |
Audio & Control
| Audio Matrix | 16 x analog audio (3-pin phoenix) |
|---|---|
| Audio Formats | LPCM up to 7.1, Dolby Digital, Dolby Atmos |
| ARC | Yes |
| EDID | Smart EDID management |
| Control | Front panel, IR, RS-232, TCP/IP; Crestron drivers |
| Warranty | 5-year limited warranty |
