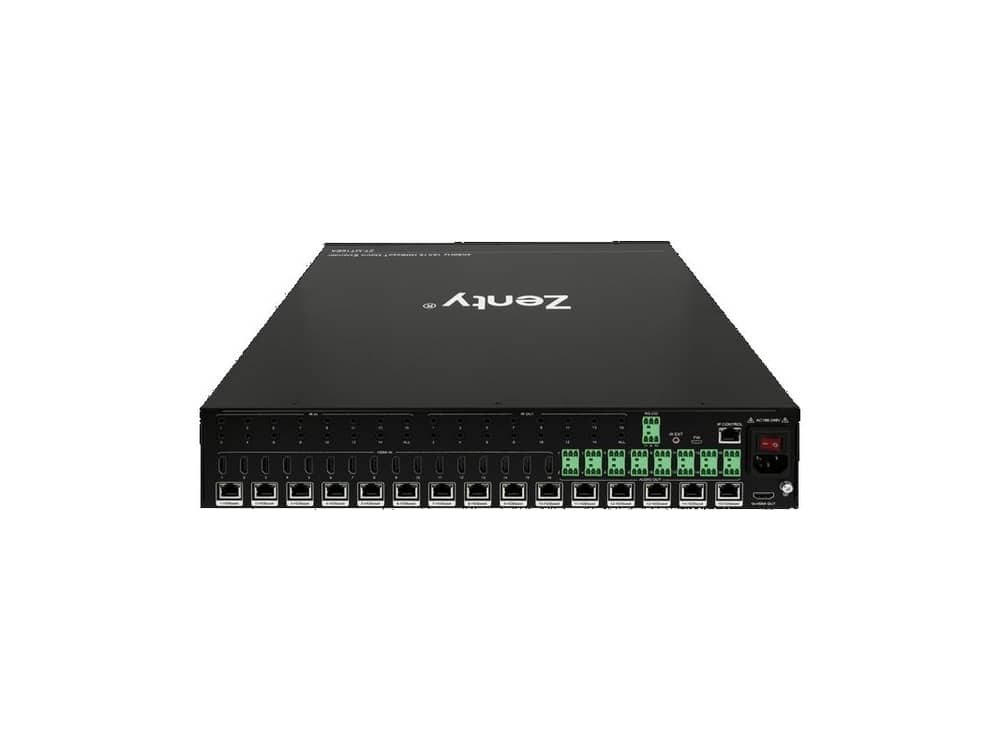

Zenty ZT-MT16EA
Equipment Sales & Professional Installation
MPN: ZT-MT16EA
- 16 x HDMI inputs, 16 outputs
- HDBaseT extends 4K to 230 ft
- HDR with 4K 60Hz resolution
- 16-port analog audio matrix
- Power over cable (PoC)
- Bi-directional IR control
- 5-year warranty
Specifications
Video
| Inputs / Outputs | 16 x HDMI in, 15 x HDBaseT out + 1 x HDMI out |
|---|---|
| HDMI Version | HDMI 2.0 |
| HDCP | HDCP 2.2 compliant |
| Resolution | Up to 4K 60Hz with HDR |
| Transmission | 4K 60Hz up to 230 ft; 1080p up to 328 ft |
Audio & Control
| Audio Matrix | 16 x analog audio (phoenix) |
|---|---|
| Audio Formats | Dolby Digital, Dolby Digital Plus, DTS |
| IR | Wide-band bi-directional IR |
| PoC | HDBaseT receivers powered by transmitter |
| Control | Front panel, IR, RS-232, TCP/IP; Crestron drivers |
| Warranty | 5-year limited warranty |
